Pickett 800-ES Log Log Greg's Slide Rules
 Images

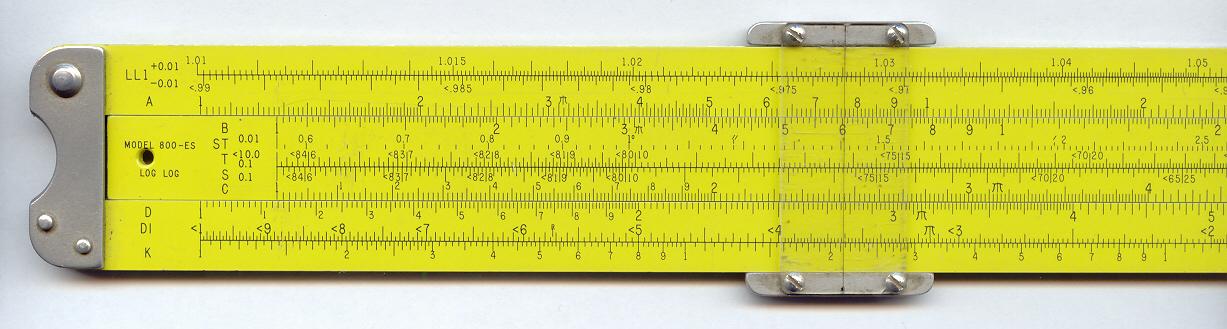

Front Left

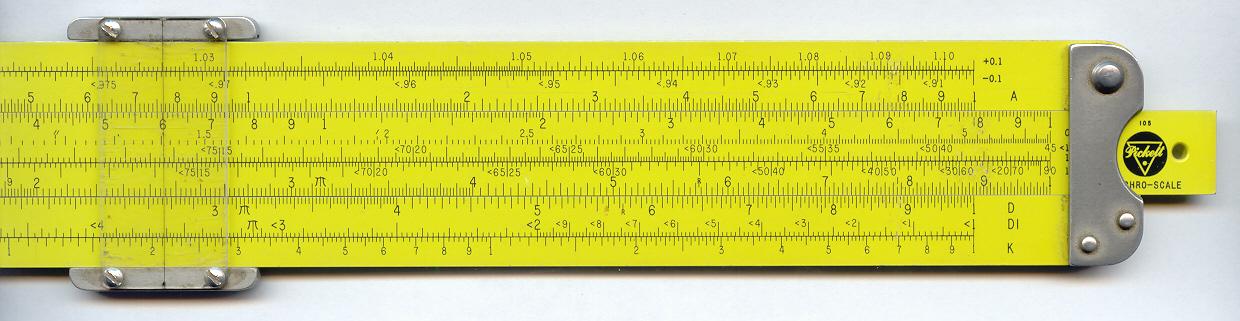

Front Right

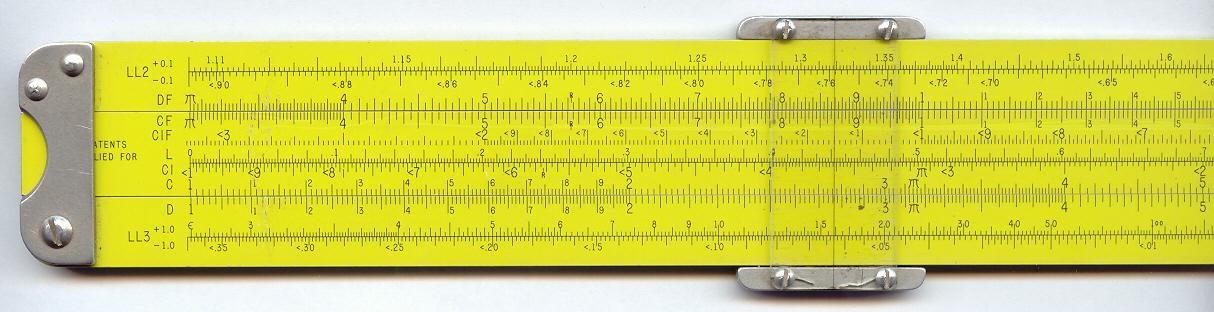

Back Left

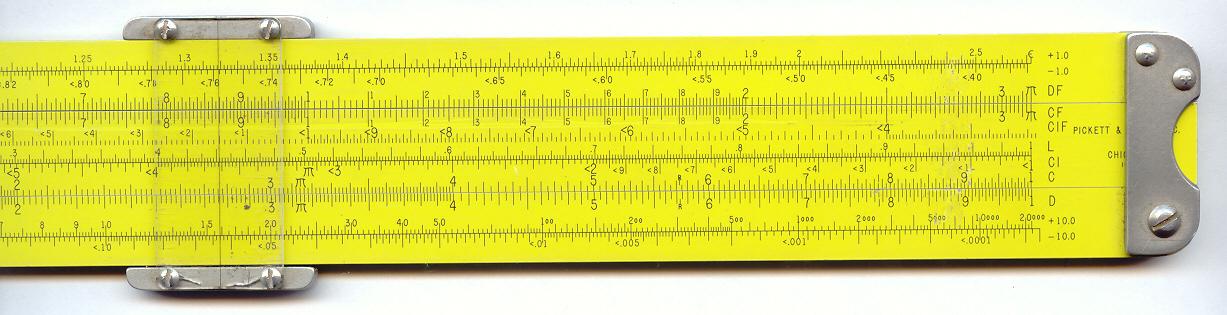

Back Right


Pickett 800-ES Log Log - Notes



  1. This is an old style Model 800-ES Log Log which is unusual as most of the "Eye Saver" models were released after Pickett went to the new end piece and cursor shape.
  2. This old style rule is similar to this Pickett 800-T (1) as it uses the same body frame, cursor and model style. This rule is probably of later make however as the scale markings more closely match the Pickett N800-ES which is a much later rule.


Details



Further details about this Slide Rule:

Brand Pickett
Model 800-ES Log Log
Country of Manufacture USA
Scales Front LL1, LL01, A [B, ST, T, S, C] D, DI, K
Scales Back LL2, LL02, DF [CF, CIF, L, CI, C] D, LL3, LL03
Number of Scales 22
Slide Rule Materials Aluminium
Cursor Materials Metal/Plastic with metal screws
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good
Documentation None
Accessories Leather case


Last updated: 2002-12-28 23:00 AEST
