Pickett N800-ES Greg's Slide Rules
 Images

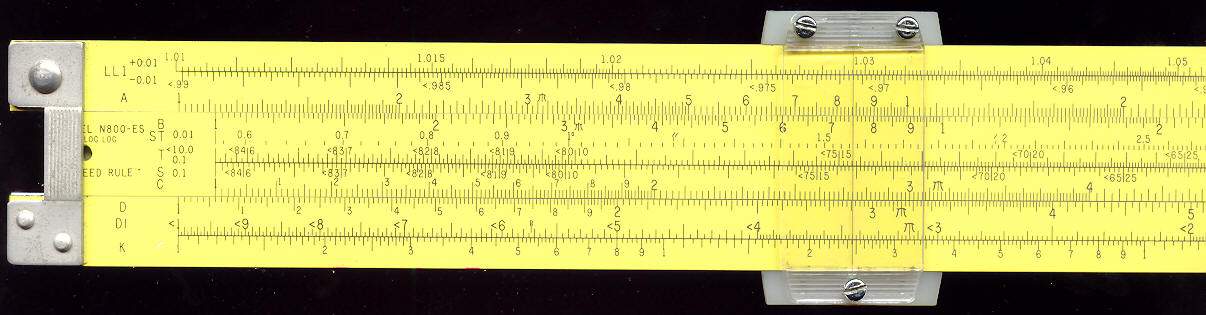

Front Left

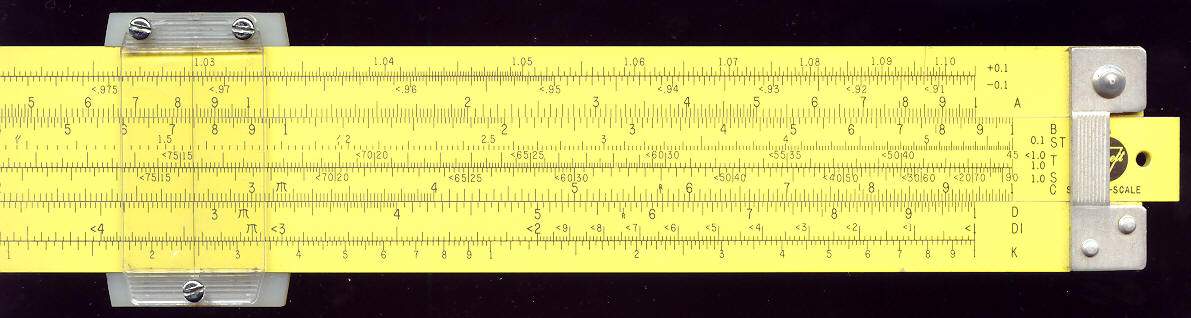

Front Right

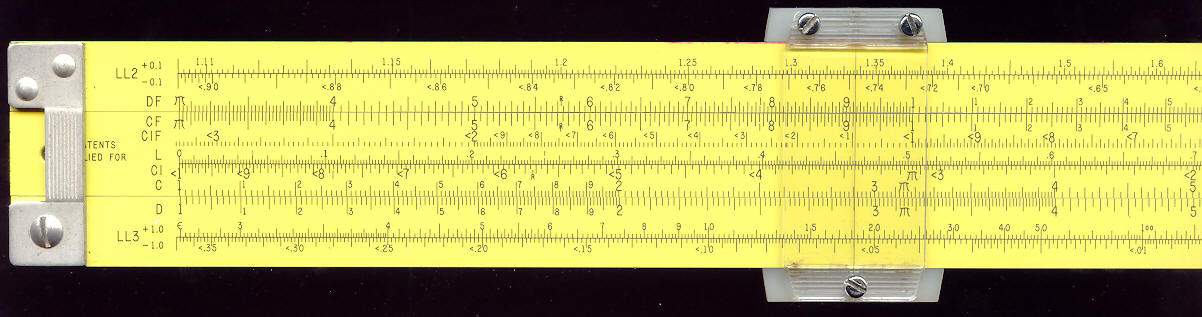

Back Left

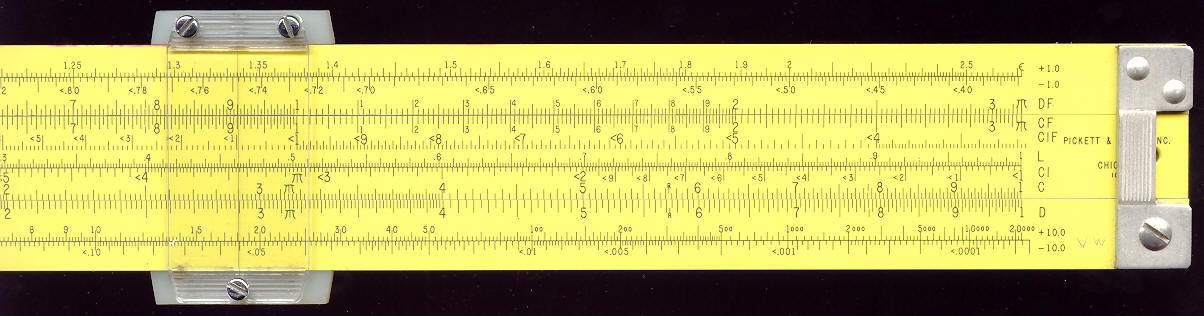

Back Right


Pickett N800-ES - Notes



  1. Exponential log-log rule.


Details



Further details about this Slide Rule:

Brand Pickett
Model N800-ES LOG LOG, Speed Rule
Country of Manufacture USA
Scales Front LL1, LL01, A [B, ST, T, S, C] D, DI, K
Scales Back LL2, LL02, DF [CF, CIF, L, CI, C] D, LL3, LL03
Number of Scales 22
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good
Documentation None
Accessories Leather case


Last updated: 2002-06-26 22:40 AEST
