Pickett 1010-T (1) Greg's Slide Rules
 Images

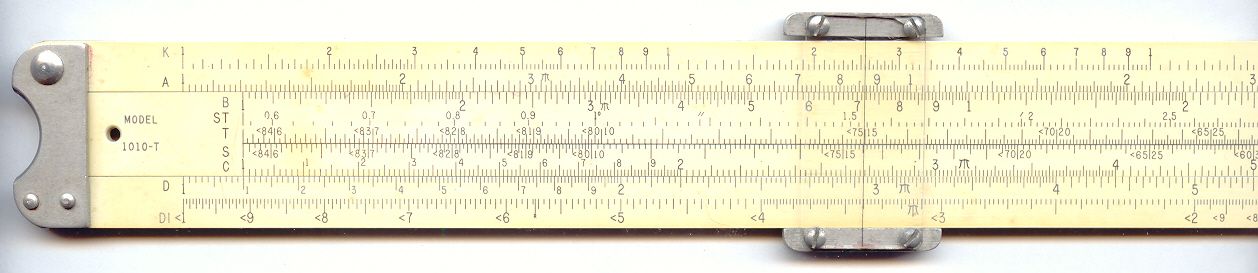

Front Left

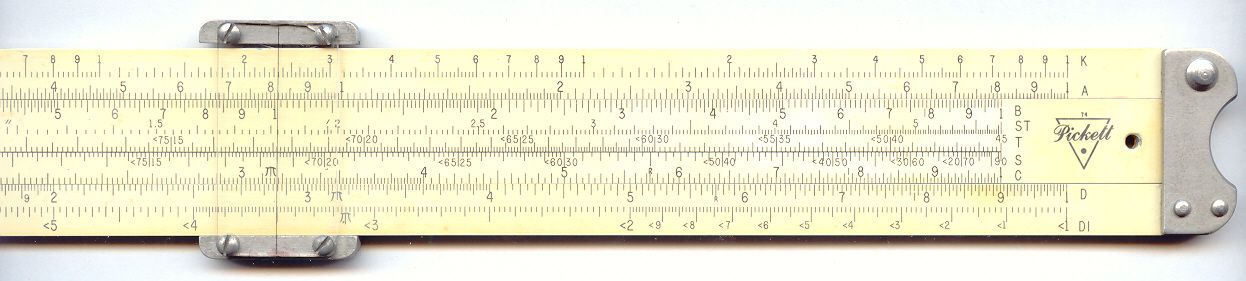

Front Right

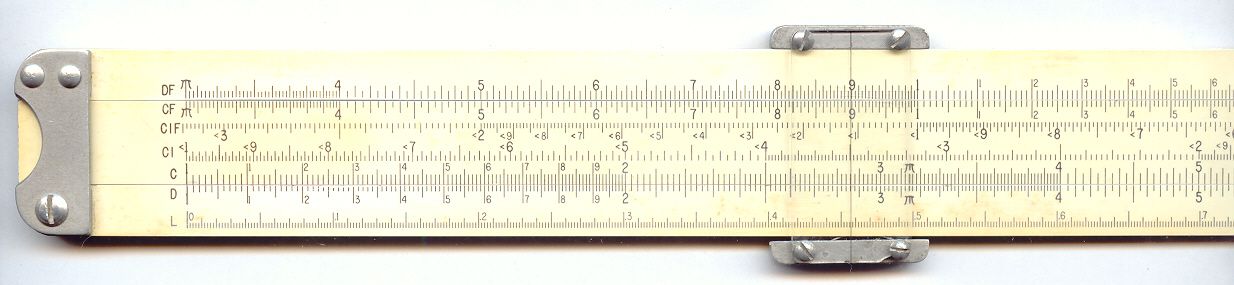

Back Left

Back Right


Pickett 1010-T (1) - Notes



  1. This rule was one of Pickett's mainly intended for Trigonometry yet it has a range of general purpose scales..
  2. This is an earlier version of the N1010-ES.
  3. This rule and 1010-T (2) are virtually identical except for the Pickett logo which changes from the plain triangle to the triangle in a circle with inverted colour scheme.


Details



Further details about this Slide Rule:

Brand Pickett
Model 1010-T
Country of Manufacture USA
Scales Front K, A [B, ST, T, S, C] D, DI
Scales Back DF [CF, CIF, CI, C] D, L
Number of Scales 16
Slide Rule Materials Aluminium
Cursor Materials Metal/Plastic with Metal Screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 3.2 cm
Condition Good
Documentation None
Accessories None


Last updated: 2002-10-06 22:00 AEST
