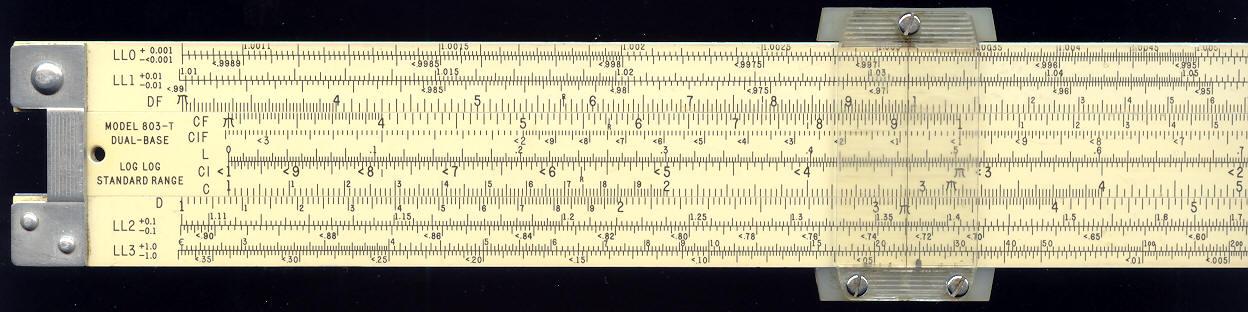

Front Left

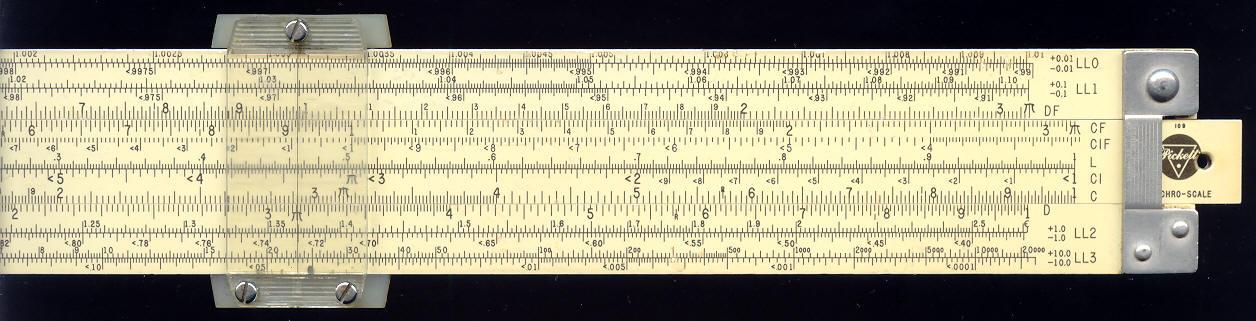

Front Right

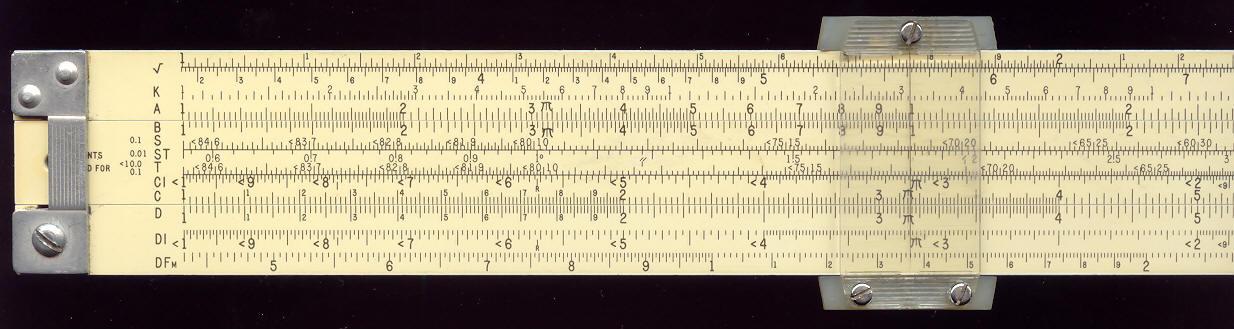

Back Left

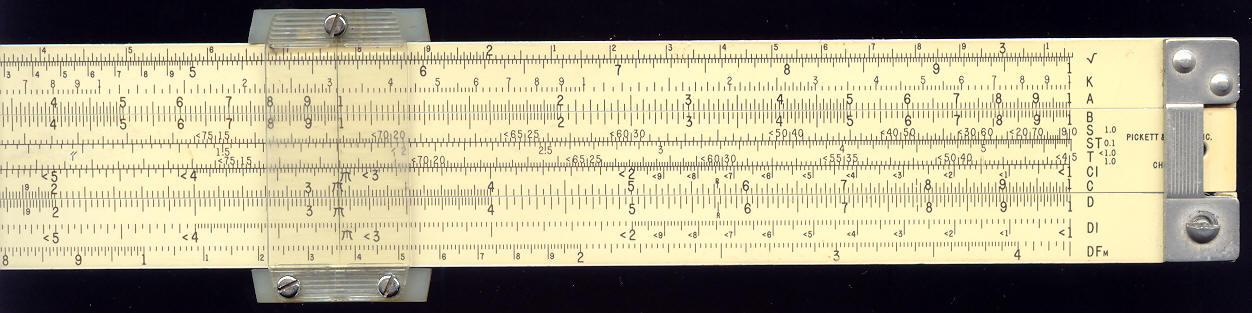

Back Right


Pickett 803-T - Notes



This is the traditional white variation of the Pickett N803-ES. What is strange here is that this rule has the same scales and arrangements as the ES variant in my collection yet this rule is labeled as a "Dual Base Log Log Standard Range" whereas the ES rule is listed as a "Log Log Speed Rule Dual Base".

This rule has no coloured scales and the enameled finish is similar to the older magnesium based series although it is in aluminium. This rule also has a new style cursor, yet the model number does not have the N prefix. I suspect that this may be an early variant of this rule.


Details



Further details about this Slide Rule:

Brand Pickett
Model 803-T Dual Base Log Log Standard Range
Country of Manufacture USA
Scales Front LL0, LL00, LL1, LL01, DF [CF, CIF, L, CI, C] D, LL2, LL02, LL3, LL03
Scales Back √1, √2, K, A [B, S, ST, T, CI, C] D, DI, DFM
Number of Scales 28
Slide Rule Materials Aluminium
Cursor Materials Nylon/Plastic with metal screws
Cursor Lines 1 Front, 1 Rear
Scale Length 25 cm
Length 30.7 cm
Width 3.8 cm
Condition Good
Documentation None
Accessories Leather case with belt loop
