Keuffel & Esser 4092-3 Greg's Slide Rules
 Images

Front Left

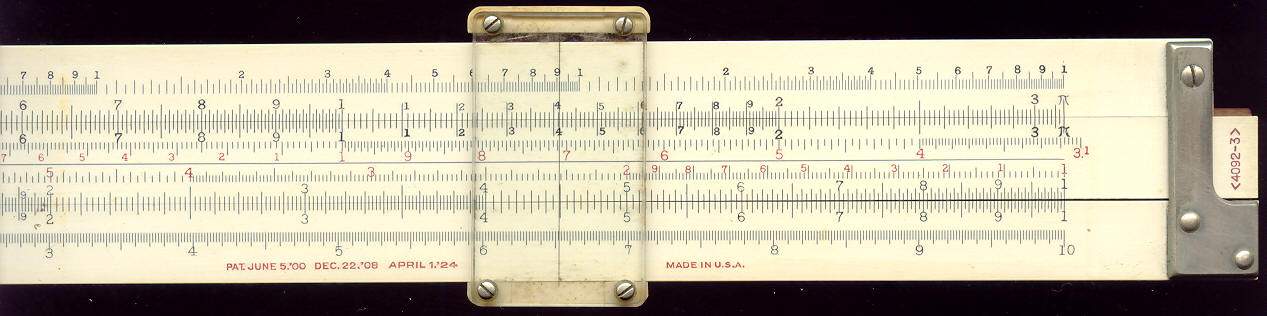

Front Right

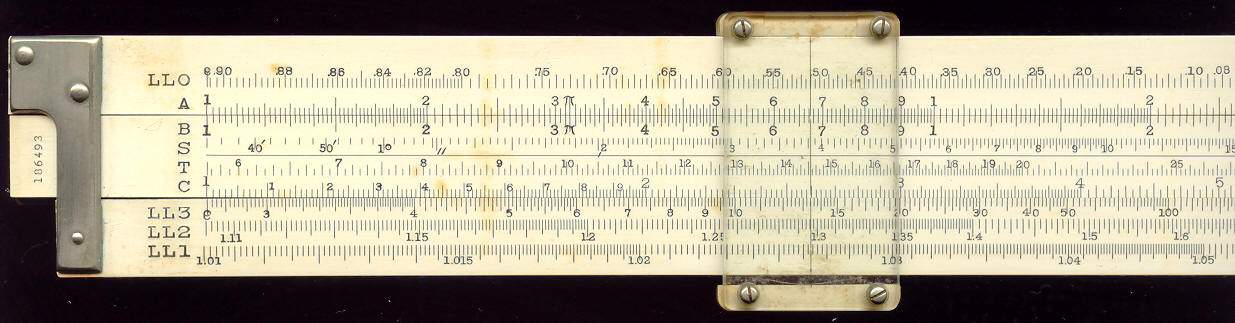

Back Left

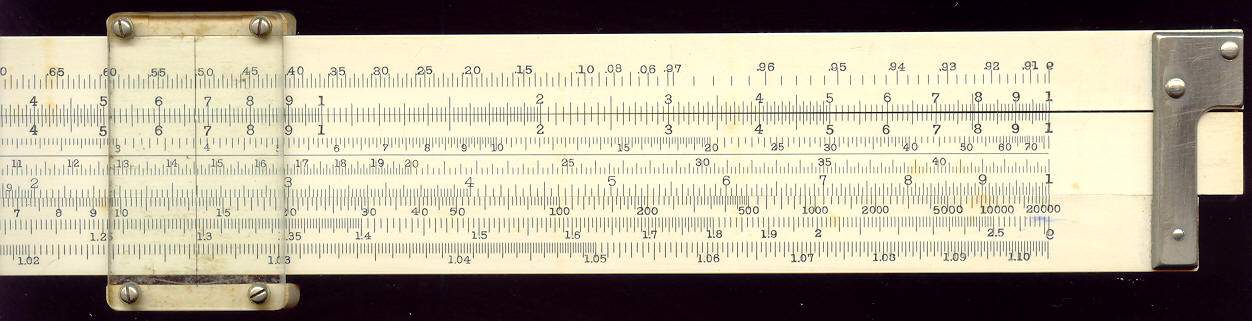

Back Right


Keuffel & Esser 4092-3 - Notes



  1. I believe that this rule probably dates from roughly 1926/27, the serial number is too early for 1930. For K&E serial number dating use the link here to Ed Chamberlain's reference set of dating curves.


Details



Further details about this Slide Rule:

Brand Keuffel & Esser
Model 4092-3 Log Log Duplex
Country of Manufacture USA
Scales Front K, DF [CF, CIF, CI, C] D, L
Scales Back LL0, A [B, S, T, C] LL3, LL2, LL1
Number of Scales 17
Slide Rule Materials Wood/Celluloid
Cursor Materials Metal/Glass
Cursor Lines 1 Front, 1 Back
Scale Length 25 cm
Length 31.7 cm
Width 4 cm
Condition Good, some small scratch marks on surface
Documentation None
Accessories Leather case


Last updated: 2002-07-13 11:45 AEST
